| Brand Name : | RLK |
| Model Number : | RLK5LZ172*7.0 |
| Certification : | ISO |
| Price : | USD |
| Payment Terms : | L/C, D/A, T/T, Western Union |
| Supply Ability : | 10000 PCS / YEAR |
| Delivery Time : | 2-7 days |

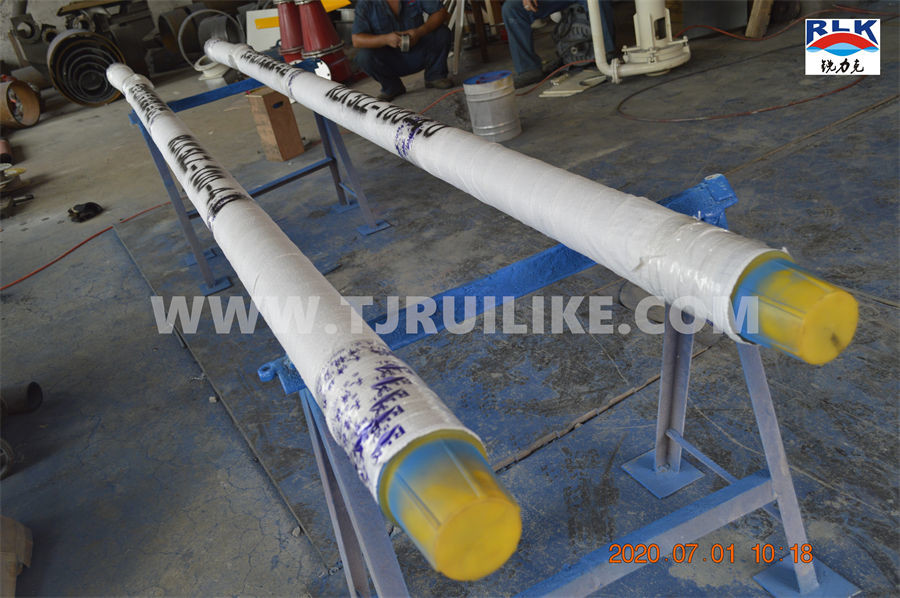

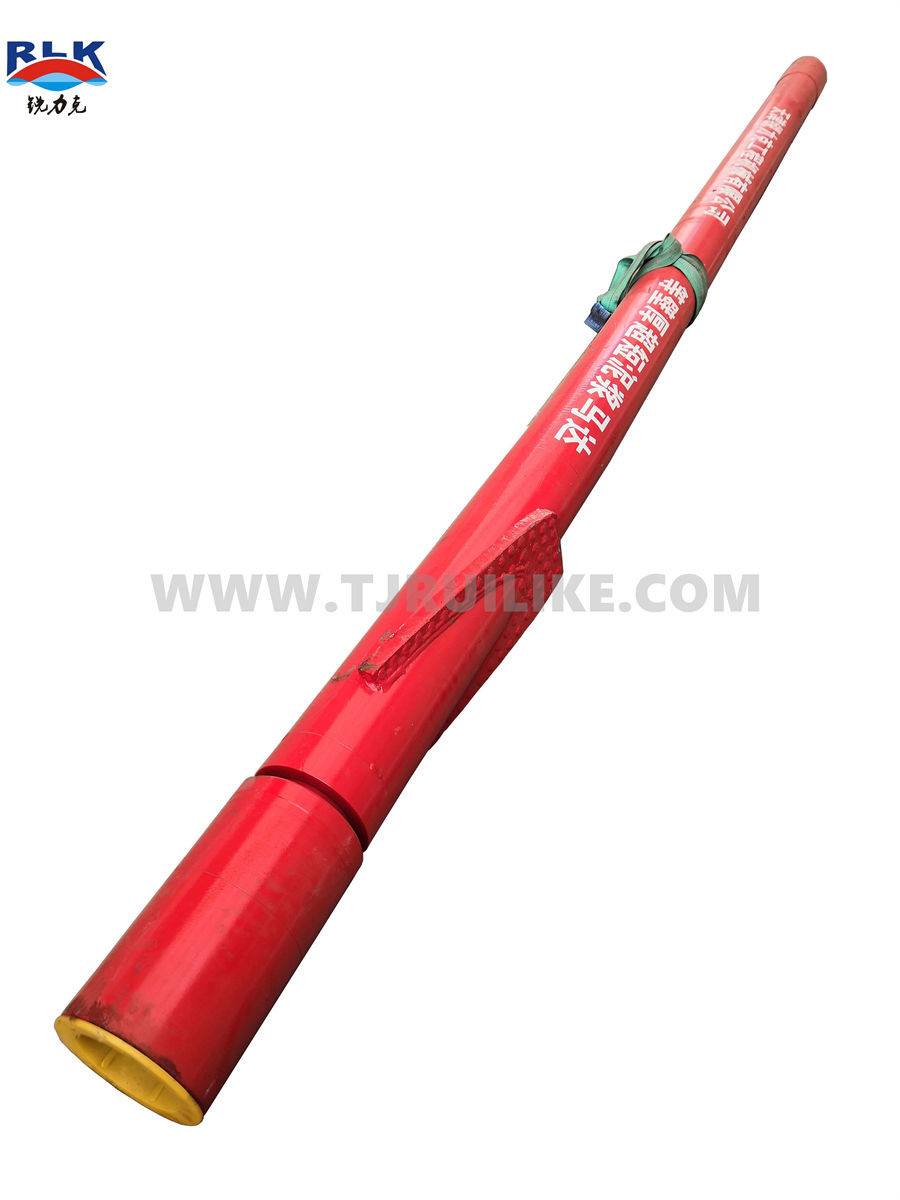

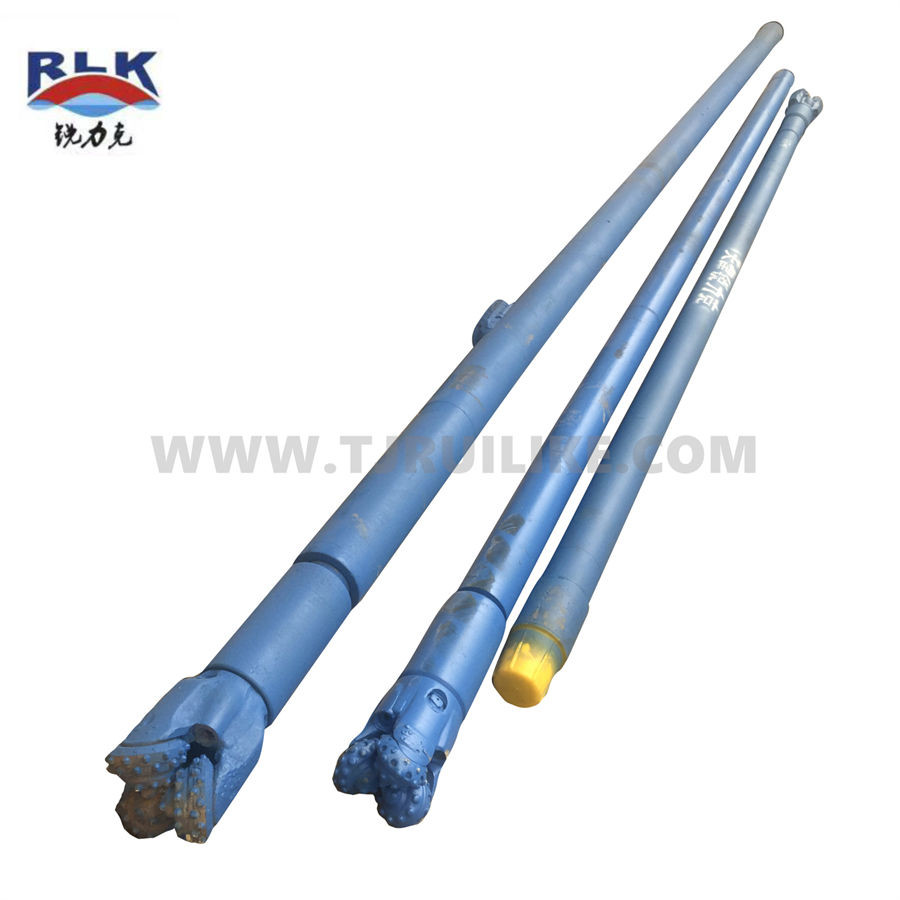

HDD mud motors
To match for rigs of Vermeer, Ditch Witch, STETON, JOVE, DHTT, DWTXS, H.H.DRILL, DILONG, GOODENG, DRILLTO, XCMG.
Mud motor size: 65/95/100/101/102/120/165/172/185/197/203/216/244 mm.
Application: horizontal directional drilling projects, underground trenchless projects.
| HDD mud motor series | |||||||||
| Model of Mud Motor | Bit Size Range | Thread Both Ends | Lobes | Flow Rate | Bit Rotary Speed | Pressure Drop | Max. Output Torque | Max.Output Power | Max WOB |
| RLK4LZ54*3.5 | 60-89mm | 1.660TBG | 5:6 | 120-180LPM | 250-400r/min | 2.4Mpa | 90N·m | 12.6 Kw | 6kN |
| RLK5LZ65*3.5 | 79-111mm | 1.900TBG | 5:6 | 180-240LPM | 240-380r/min | 3.4Mpa | 180N·m | 14.8Kw | 8kN |
| RLK5LZ95*7.0 | 118-152mm | 3-1/2'' REG | 5:6 | 360-600LPM | 100-220r/min | 2.8Mpa | 955N·m | 24Kw | 50kN |
| RLK7LZ95*7.0 | 118-152mm | 3-1/2'' REG | 7:8 | 360-720LPM | 80-180r/min | 4.0Mpa | 1260N·m | 35Kw | 50kN |
| RLK5LZ120*7.0 | 149-200mm | 3-1/2'' REG | 5:6 | 600-960LPM | 95-190r/min | 3.2Mpa | 1600N·m | 38Kw | 100kN |
| RLK7LZ120*7.0 | 149-200mm | 4-1/2'' REG | 7:8 | 60-1200LPM | 80-160r/min | 4.0Mpa | 2800N·m | 62.5Kw | 100kN |
| RLK5LZ165*7.0 | 213-251mm | 4-1/2'' REG | 5:6 | 1200-1920LPM | 100-160r/min | 4.0Mpa | 3800N·m | 73Kw | 160kN |
| RLK5LZ172*7.0 | 213-251mm | 4-1/2'' IF | 5:6 | 1200-2160LPM | 106-170r/min | 4.0Mpa | 4600N·m | 115Kw | 170kN |
| RLK5LZ185*7.0 | 241-270mm | 6-5/8'' REG | 5:6 | 1200-2220LPM | 80-150r/min | 4.0Mpa | 5800N·m | 124Kw | 180kN |
| RLK5LZ197*7.0 | 251-311mm | 6-5/8'' REG | 5:6 | 1320-2700LPM | 80-150r/min | 4.0Mpa | 7600N·m | 177Kw | 200kN |
| RLK6LZ203*7.0 | 251-311mm | 6-5/8'' REG | 6:7 | 1500-3180LPM | 95-140r/min | 5.0Mpa | 9800N·m | 199Kw | 210kN |
| RLK5LZ216*7.0 | 311-394mm | 6-5/8'' REG | 5:6 | 1500-3180LPM | 85-160r/min | 5.0Mpa | 11000N·m | 220Kw | 250kN |
| RLK5LZ244*7.0 | 311-445mm | 6-5/8'' REG | 5:6 | 1500-4500LPM | 90-220r/min | 5.0Mpa | 16000N·m | 360Kw | 300kN |
| RLK5LZ100*7.0 | 118-152mm | 3-1/2'' REG | 5:6 | 360-840LPM | 140-280r/min | 3.2Mpa | 1170N·m | 50Kw | 55kN |
| RLK9LZ100*7.0 | 118-152mm | 3-1/2'' REG | 9:10 | 480-980LPM | 130-260r/min | 3.2Mpa | 1500N·m | 58Kw | 55kN |
- About Us -

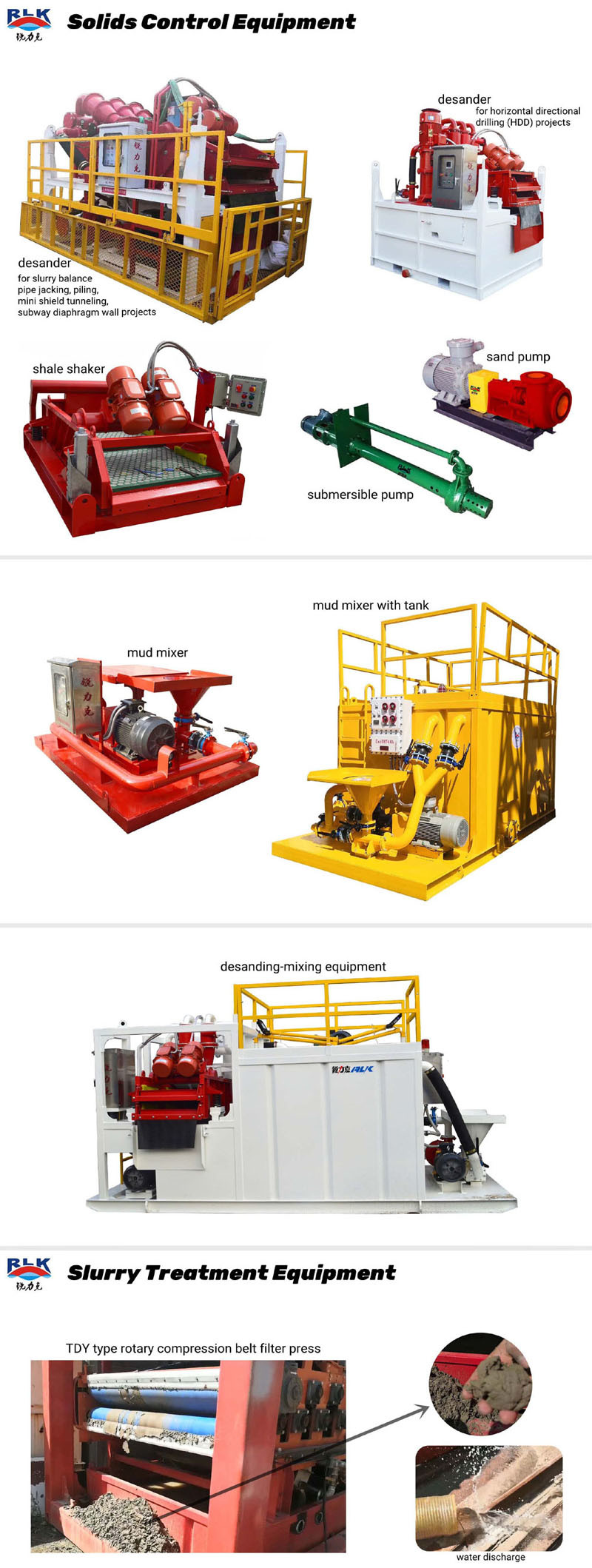

Tianjin Ruilike Engineering Machinery Co., Ltd. was established on May 31,2012, located in Tianjin, China. The company produces HDD rock drilling tools, soil sand drilling tools, mud solid control system, sewage treatment system, municipal sewage treatment system and ect. Accoranding constantly develop, RUILIKE be known of brand suppliers, we adhering to "to forge ahead ","to be top ","to do the best" enterprise concept, people-oriented, and to service to create value, supply satisfactory product to globle more than 200 customers. We consciously integrate social responsibility into production and management activities, develop green machinery products, and protect environmental resources. Ruilike always keeping to the steady management, creating golden brand, making master style. RUILIKE pleasure to work with colleagues to create supreme future.
